Functions:

• The MOSFET targets the energy from battery directly to the motor, bypassing the mechanical trigger contacts, provide you with higher rate of fire of the blasters ad a faster trigger response, and the contacts will be protected against burn out.

• Active Brake uses the excess energy from the motor to stop it. The braking effect is the most powerful with high torque motor

• The Active brake will eliminate the over spin of Gearbox and solves multiple shots in SEMI mode, the piston will stop in front position which eliminates unnecessary stresses, increasing the service life of Gearbox and its parts.
• Option 2 T238 V2 TrollyFet (Wired) comes pre wired with high temperature high quality silver plated wire at an extra cost. You only need to solder the existing magazine terminals and battery plug the the kit. (Terminals and battery plug not included)

SPECIFICATIONS

• JM Gen.9 / XWE M4 / Kublai / JQ and more V2 gearbox

• working voltage 7.4v-14.8v

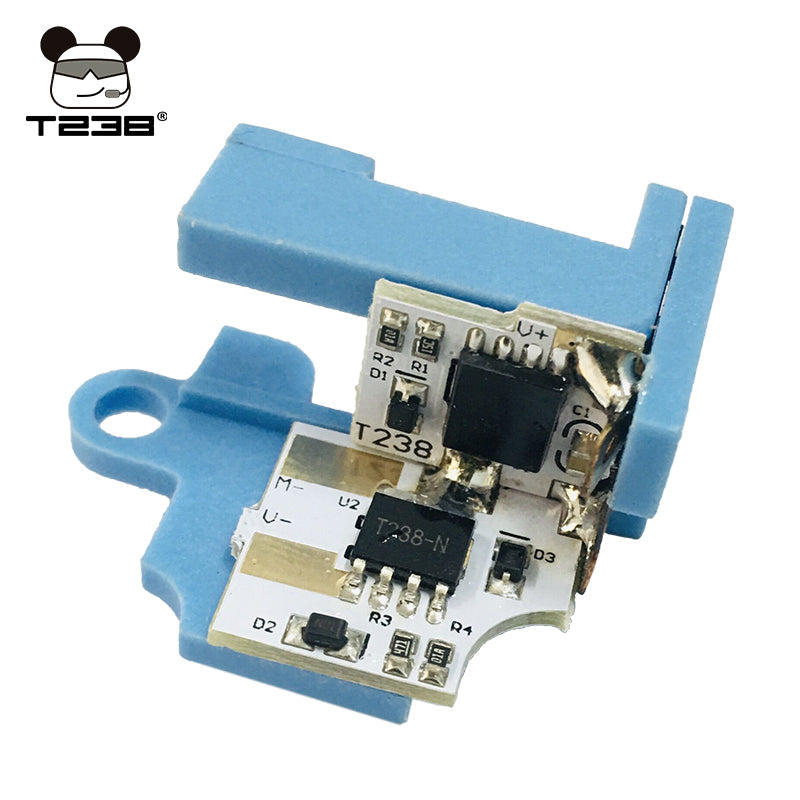

• T238 Active braking module is a V2 gearbox switch with active braking, designed for gel ball blasters and other V2 gearboxes.

• It increases blaster rate of fire and solves multiple shots in semi mode.

• Up to 240A starting current and up to 100A braking current

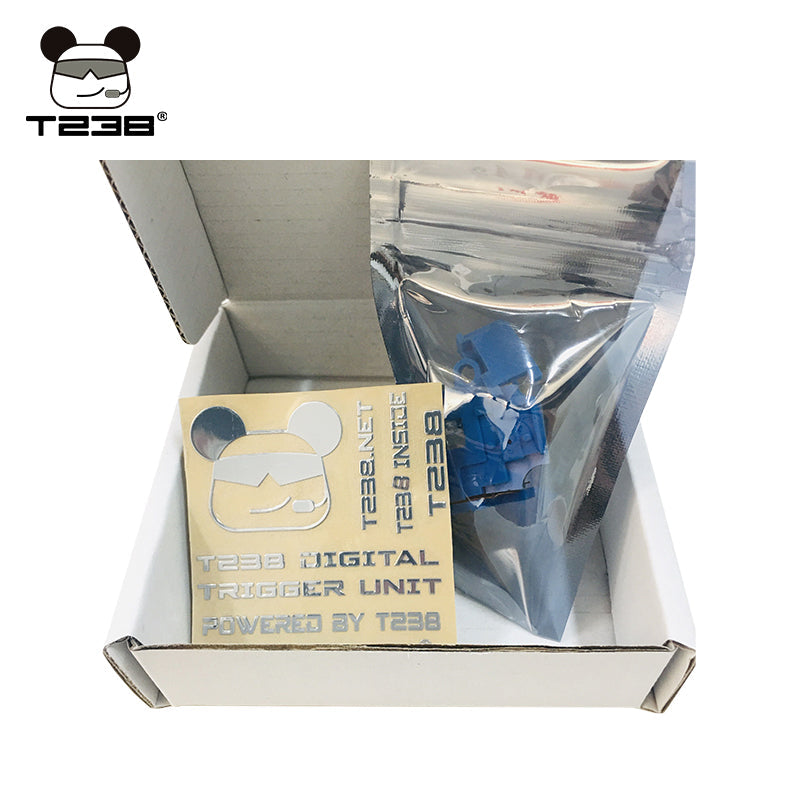

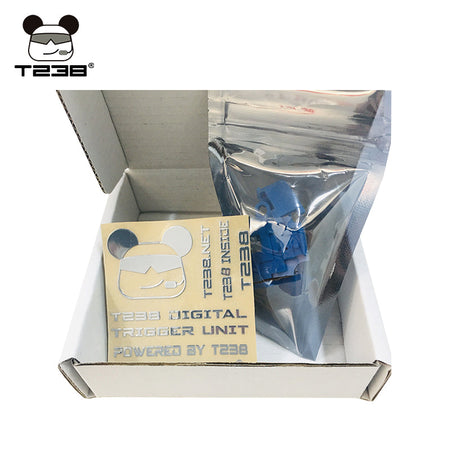

PACKAGE CONTENTS

OPTION 1

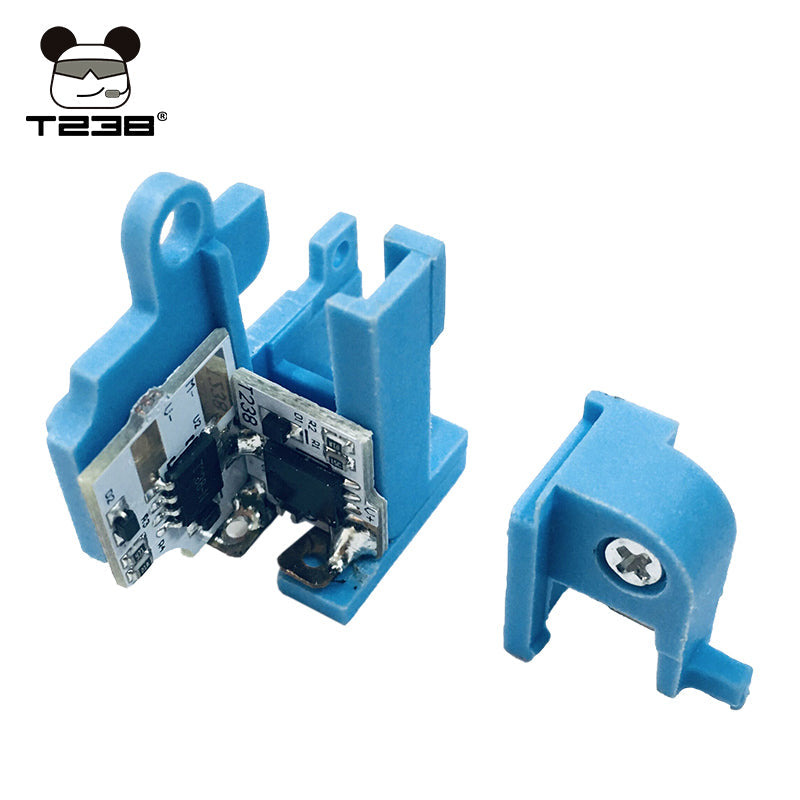

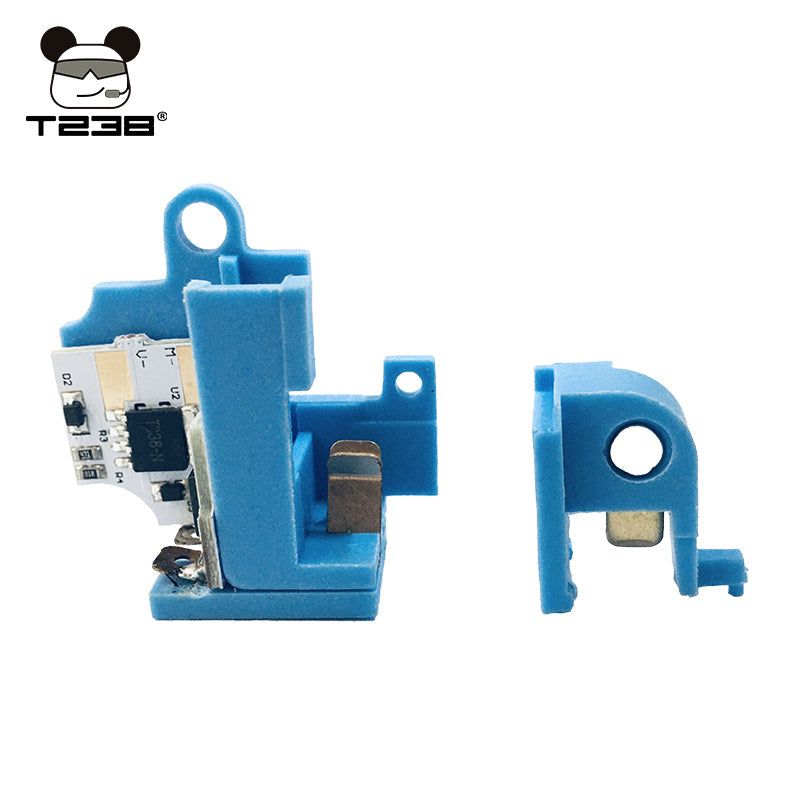

• T238 V2 TrollyFet
• T238 Metal Decals

OPTION 2

• T238 V2 TrollyFet Wired
• T238 Metal Decals
