OT Magazine motors

  • Sale
  • Regular price $6.00
Tax included. Shipping calculated at checkout.


These motors are to upgrade or replace your magazine motor for better feeding speed to match the rate of fire of your blaster. Three different colours to indicate the different speeds. These high quality motors will last longer and run quicker than standard motors.

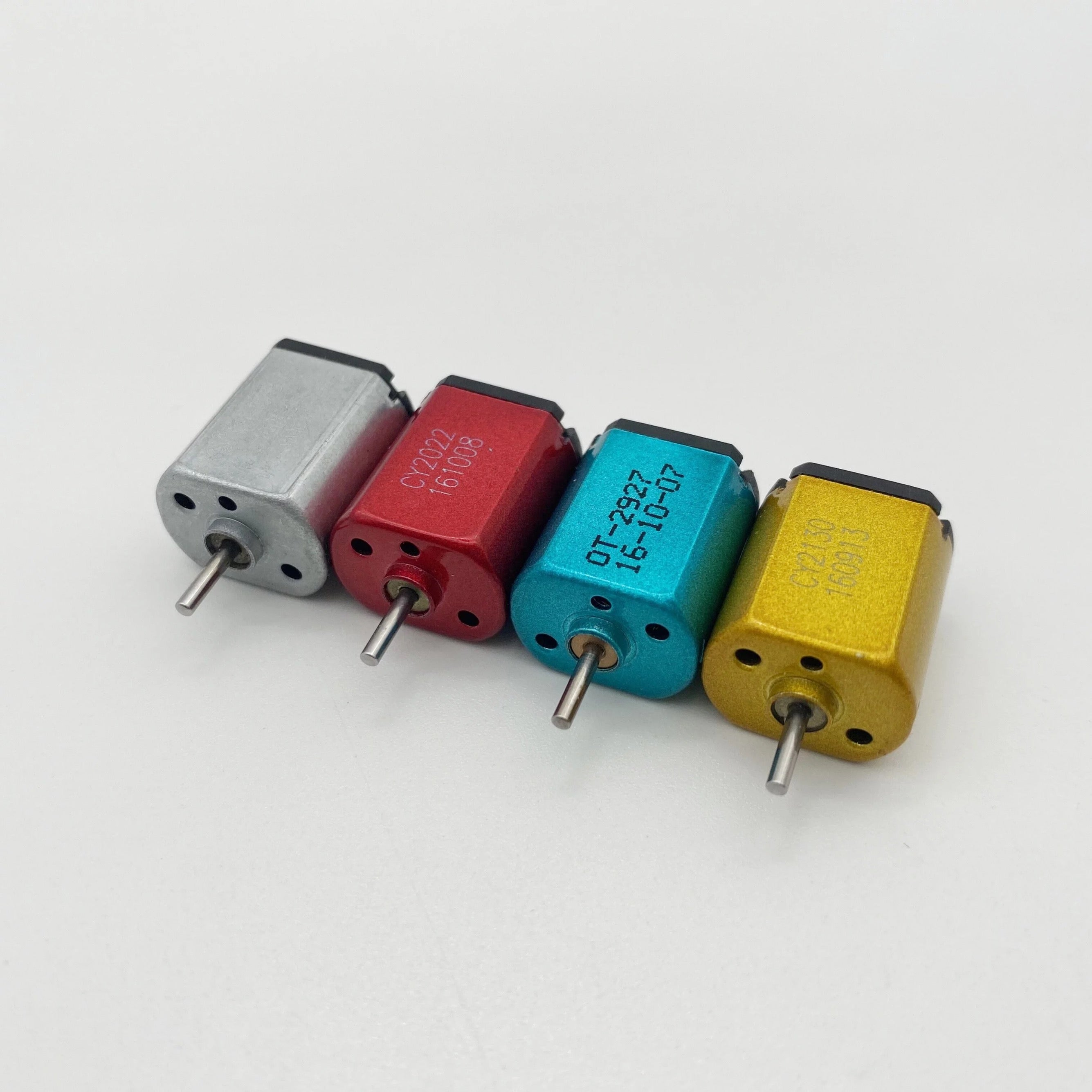

Four colours to choose from:

  • White 16000-40000RPM
  • Red 17000-42000RPM
  • Blue 20000-48000RPM
  • Yellow 13000-35000RPM

These motors require a high level of soldering skill and should be only fitted by professional Blaster Techs.

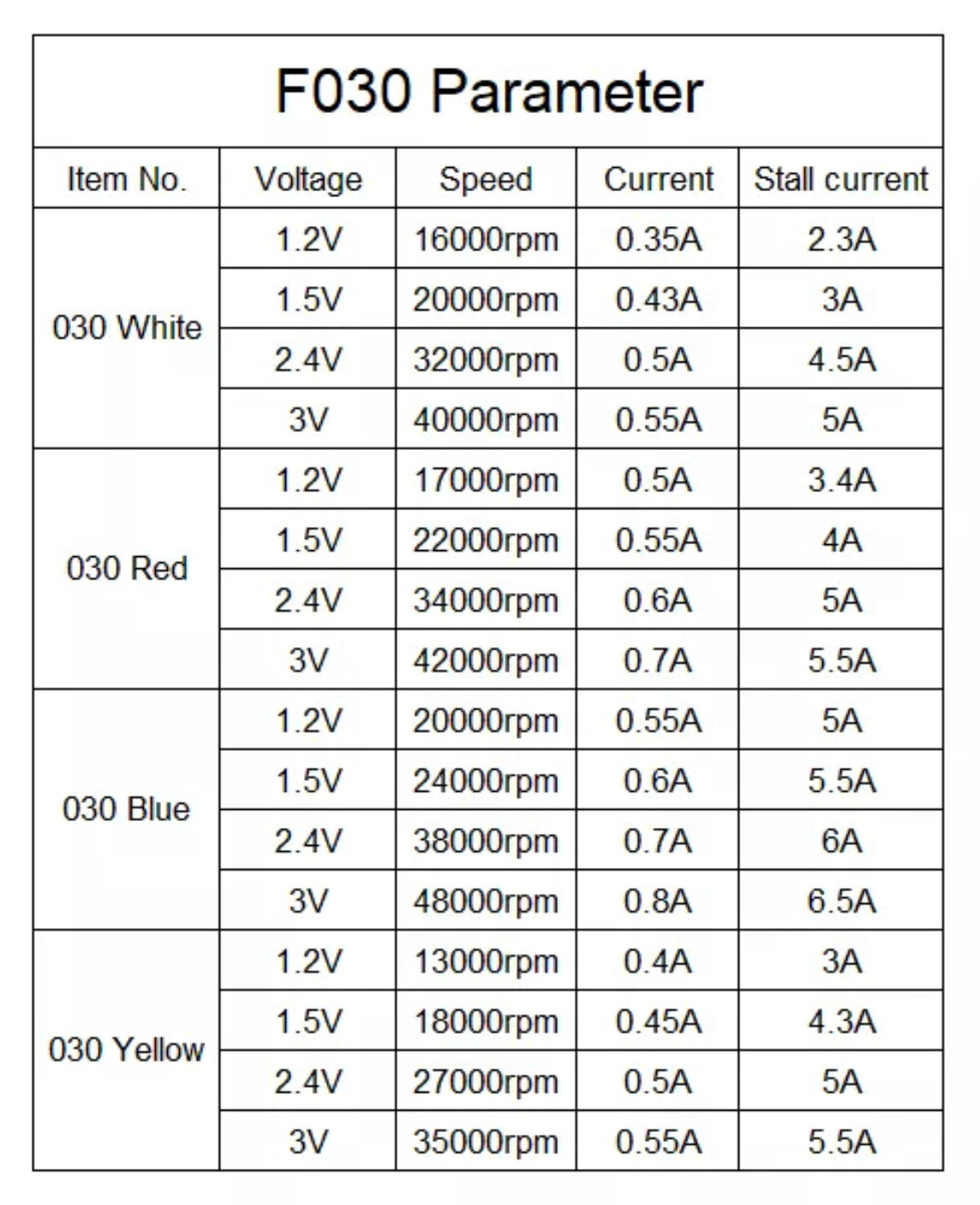

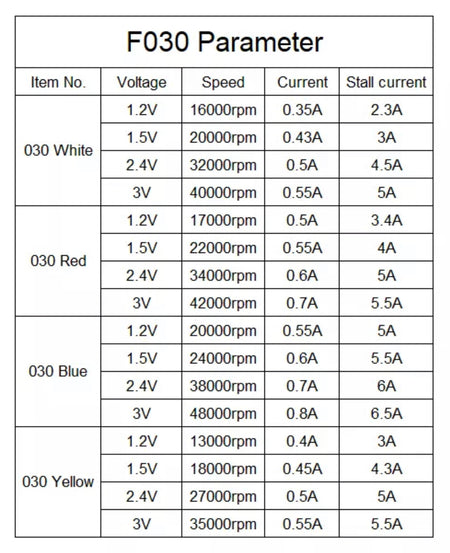

The chart below indicates the voltage you need to get the required RPM

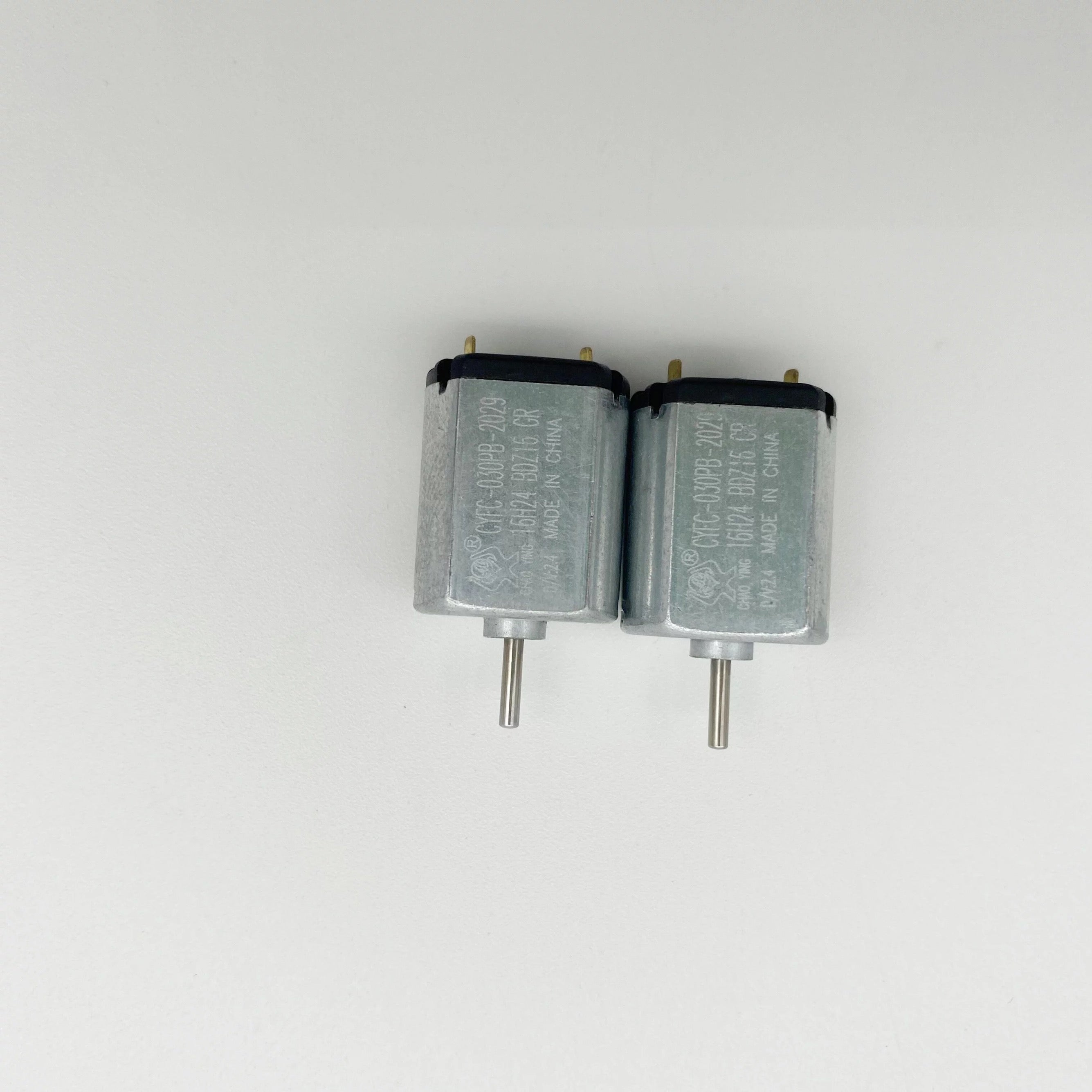

White

  • 16000rpm @ 1.2v
  • 20000rpm @ 1.5v
  • 32000rpm @ 2.4v
  • 40000rpm @ 3v

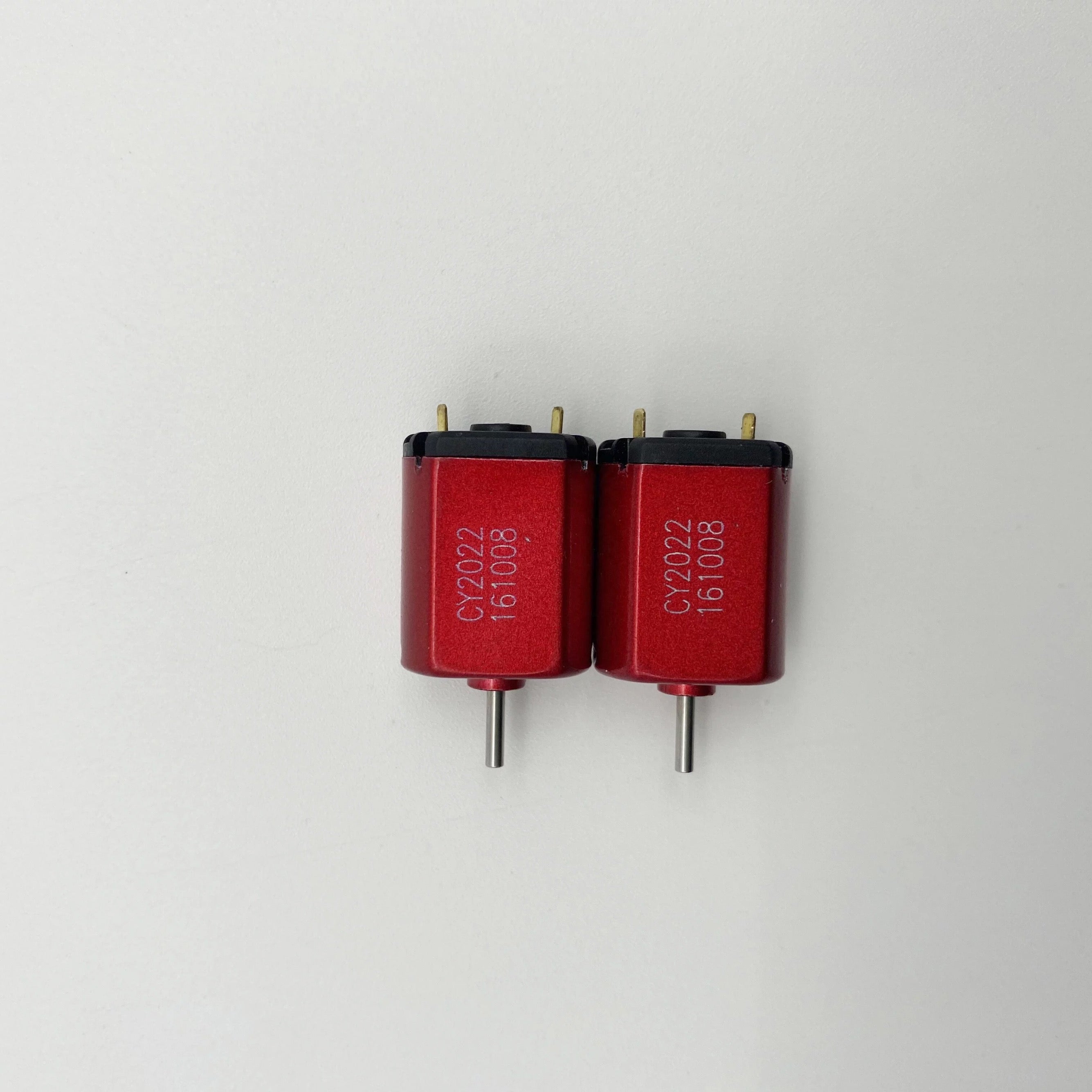

Red

  • 17000rpm @ 1.2v
  • 22000rpm @ 1.5v
  • 34000rpm @ 2.4v
  • 40000rpm @ 3v

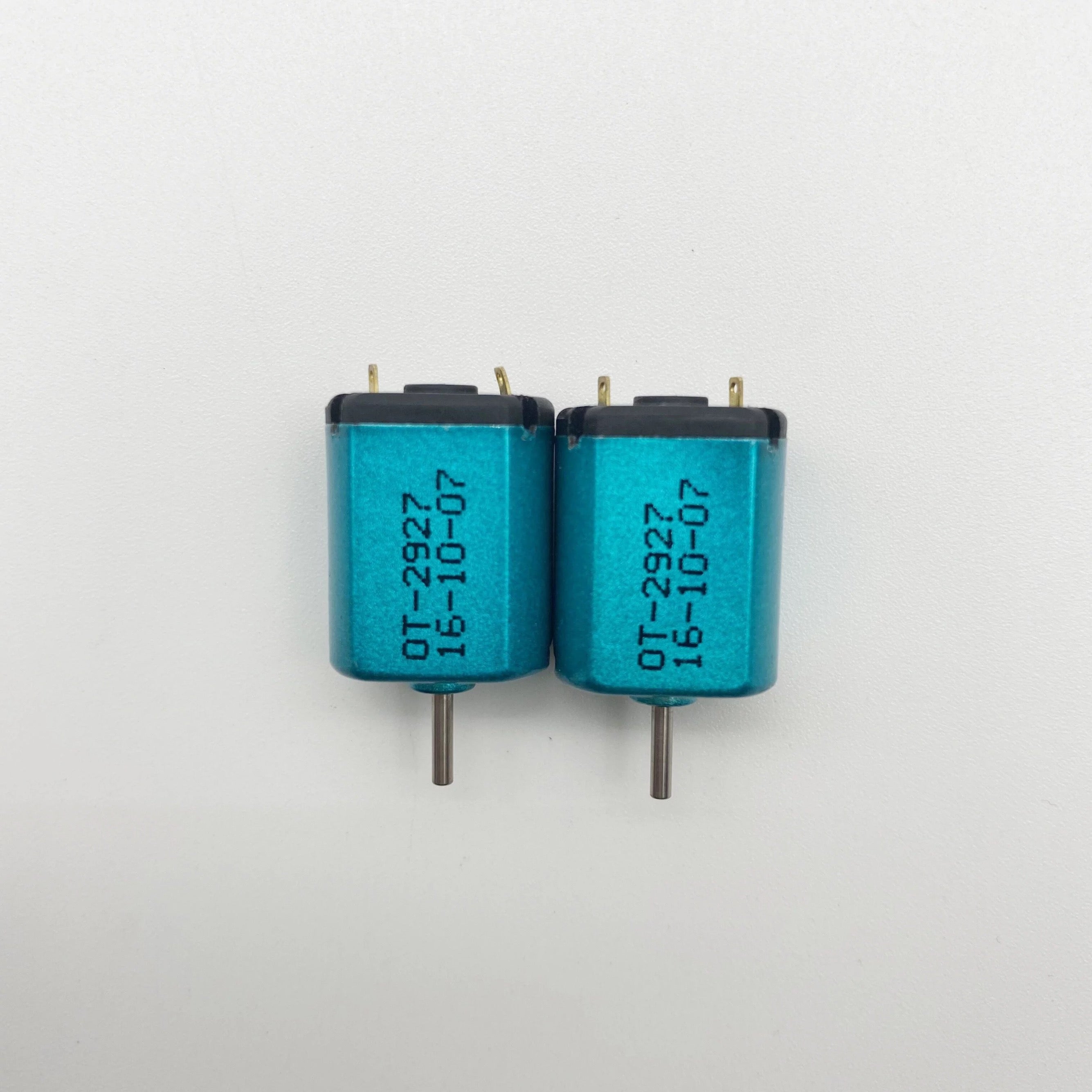

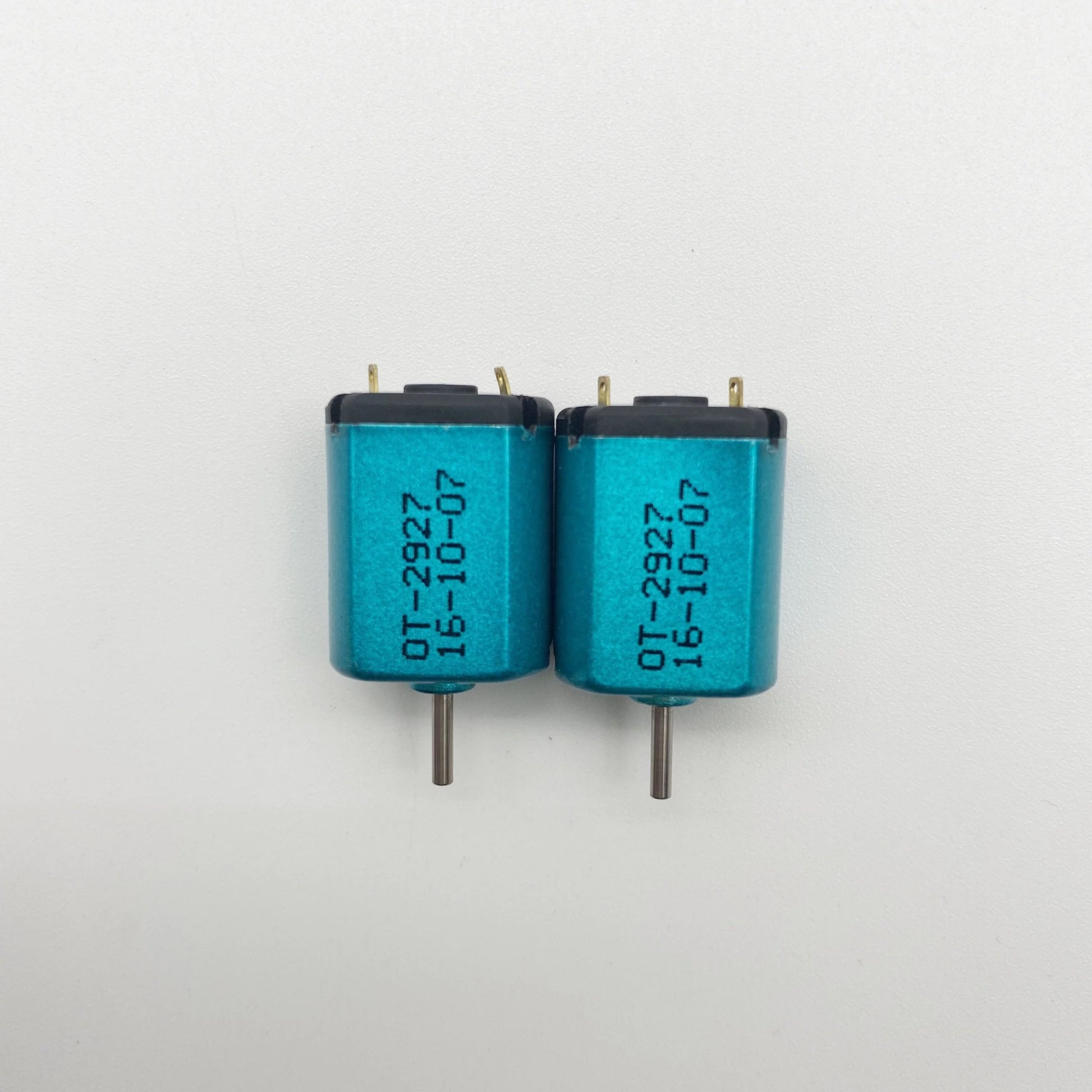

Blue

  • 20000 @ 1.2v
  • 24000 @ 1.5v
  • 38000 @ 2.4v
  • 48000 @ 3v

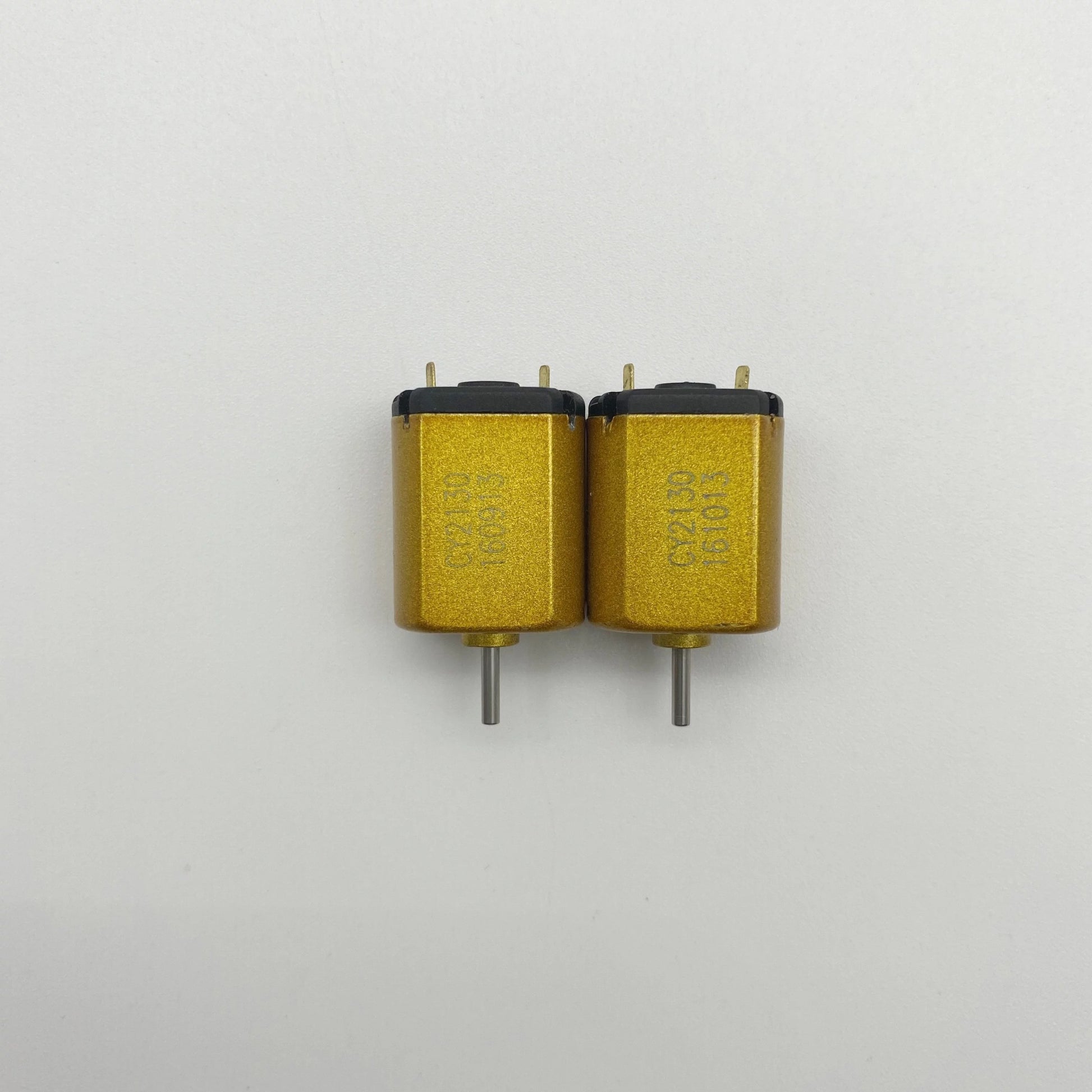

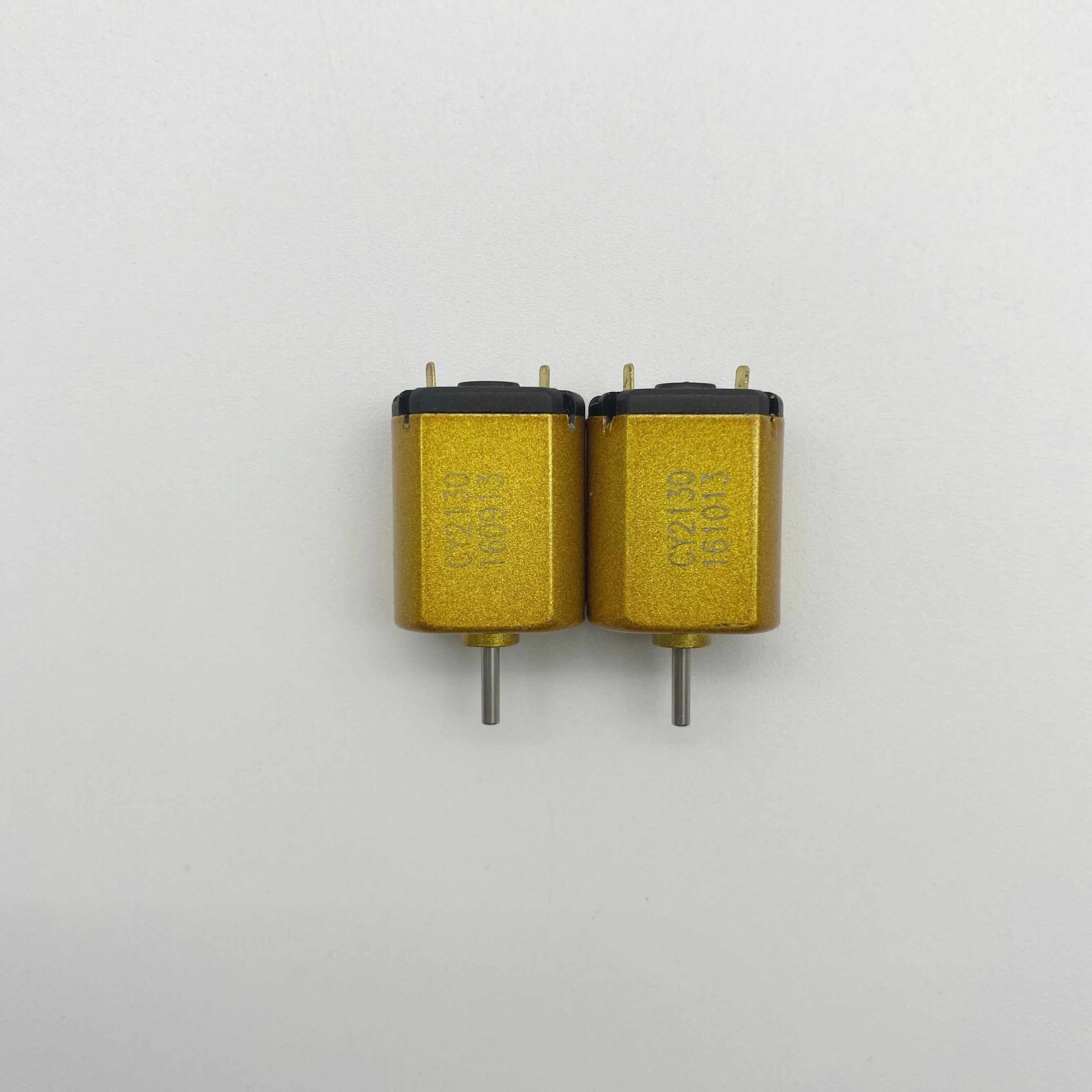

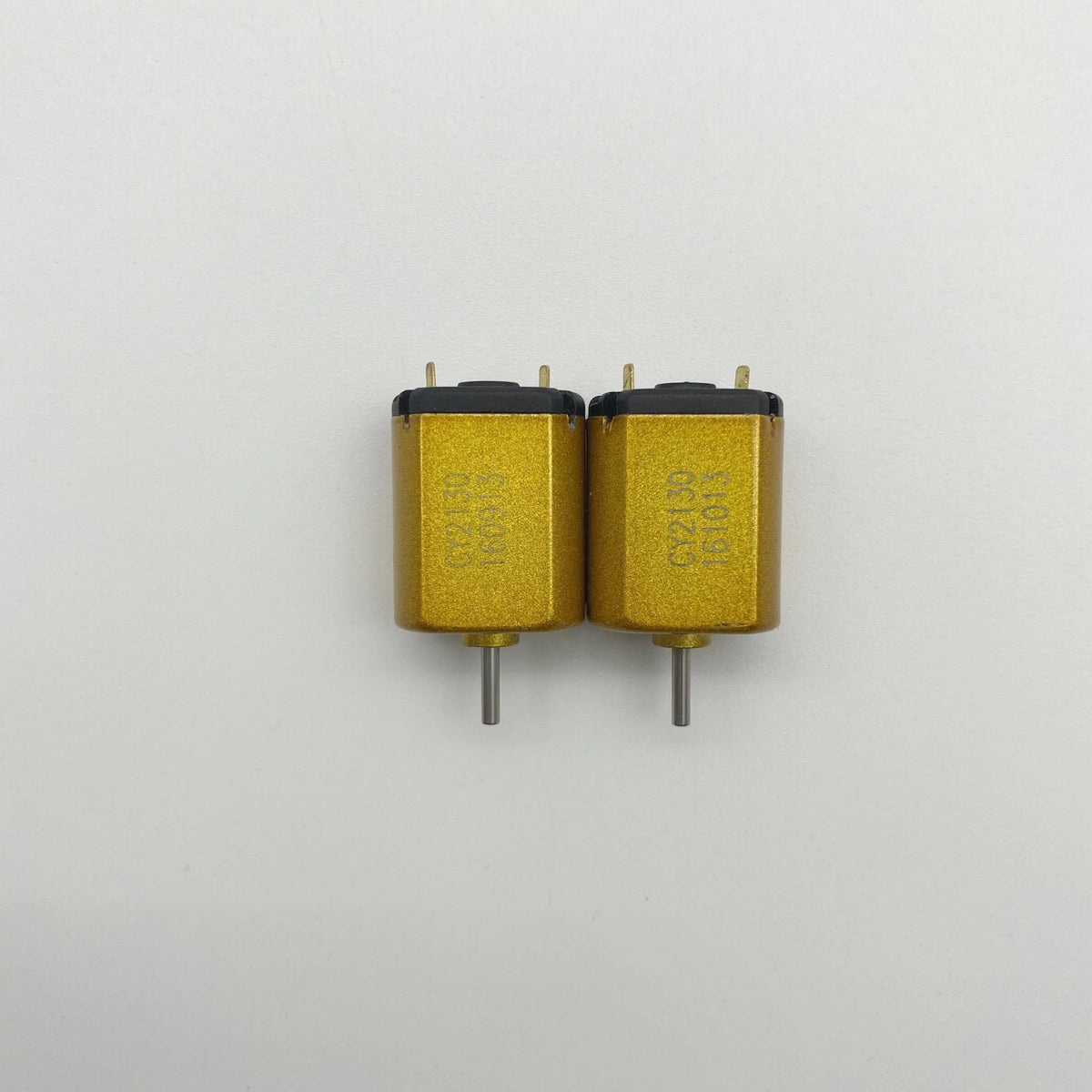

Yellow

  • 13000 @ 1.2v
  • 18000 @ 1.5v
  • 27000 @ 2.4v
  • 35000 @ 3v
