CHIHAI M160 16TPA NdFeB 480 long

Out of stock
Regular price $110.00 inc. VAT

If you love this product and would like to inform others about it you can share it with your friends on social media.

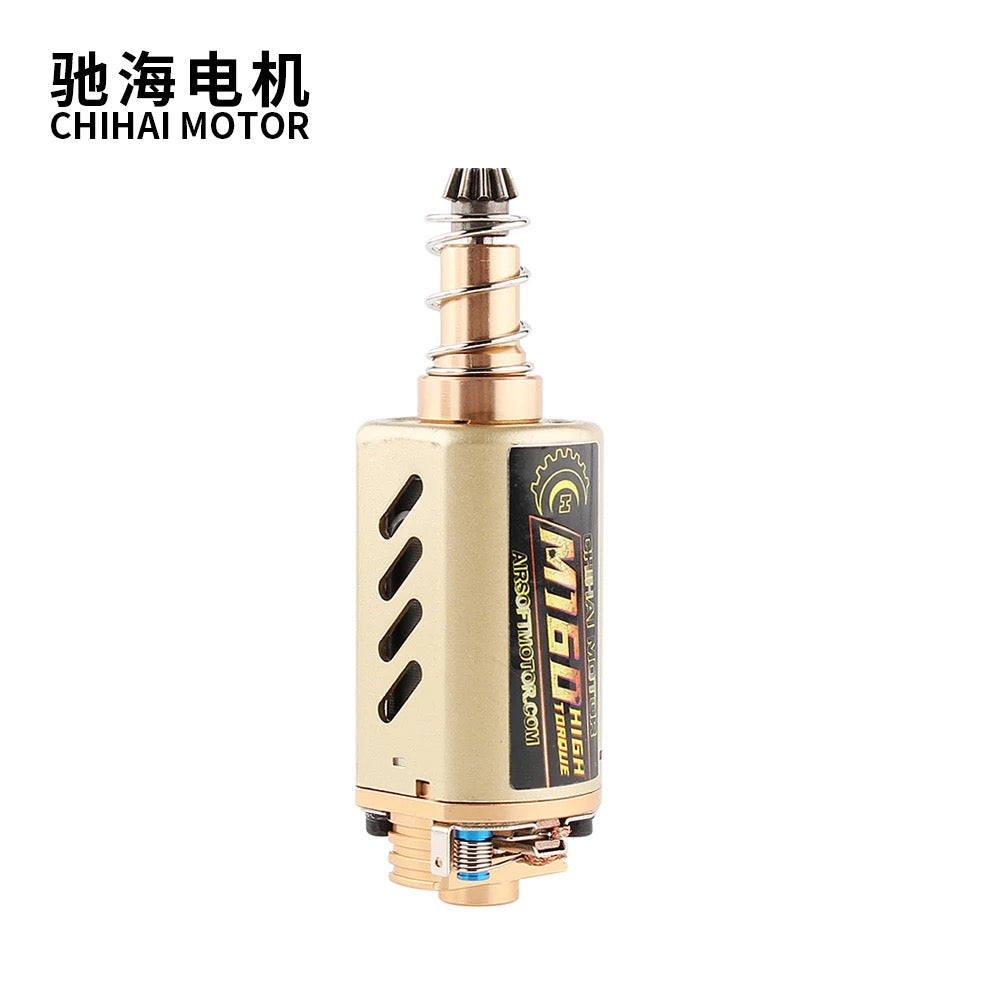

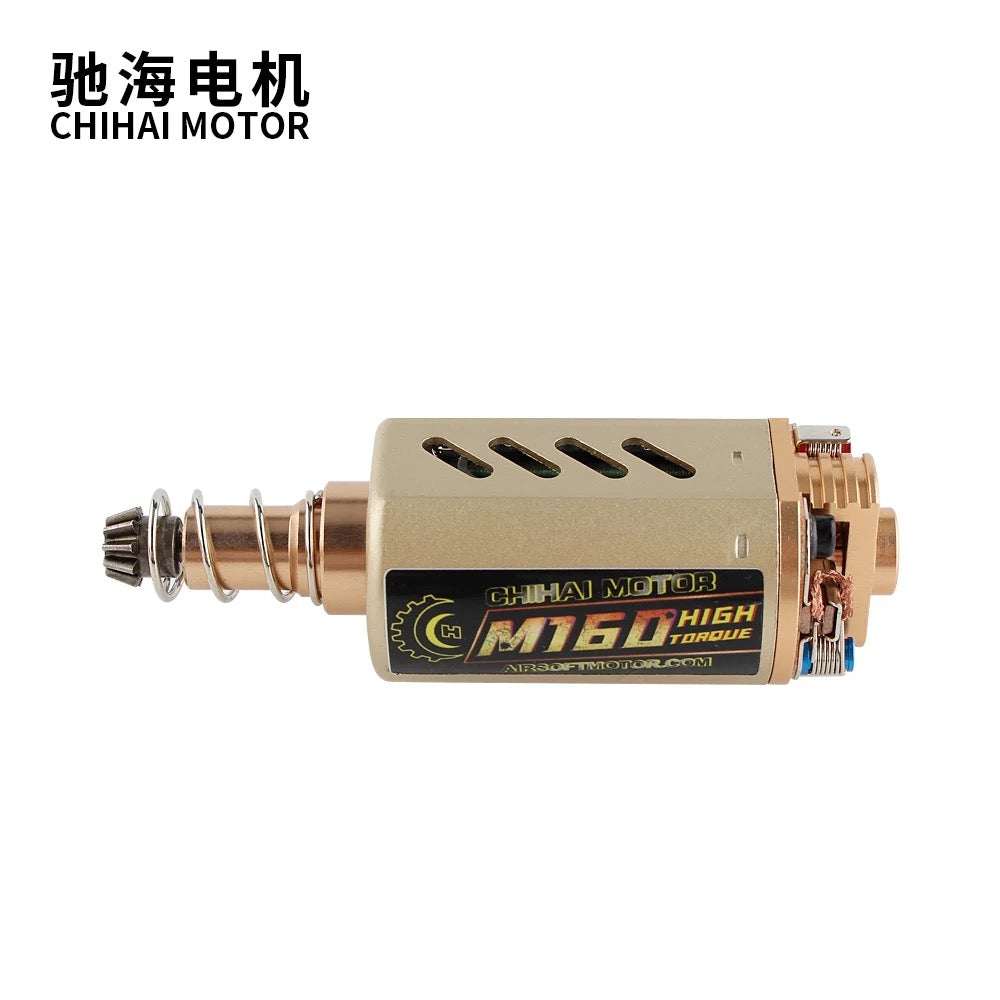

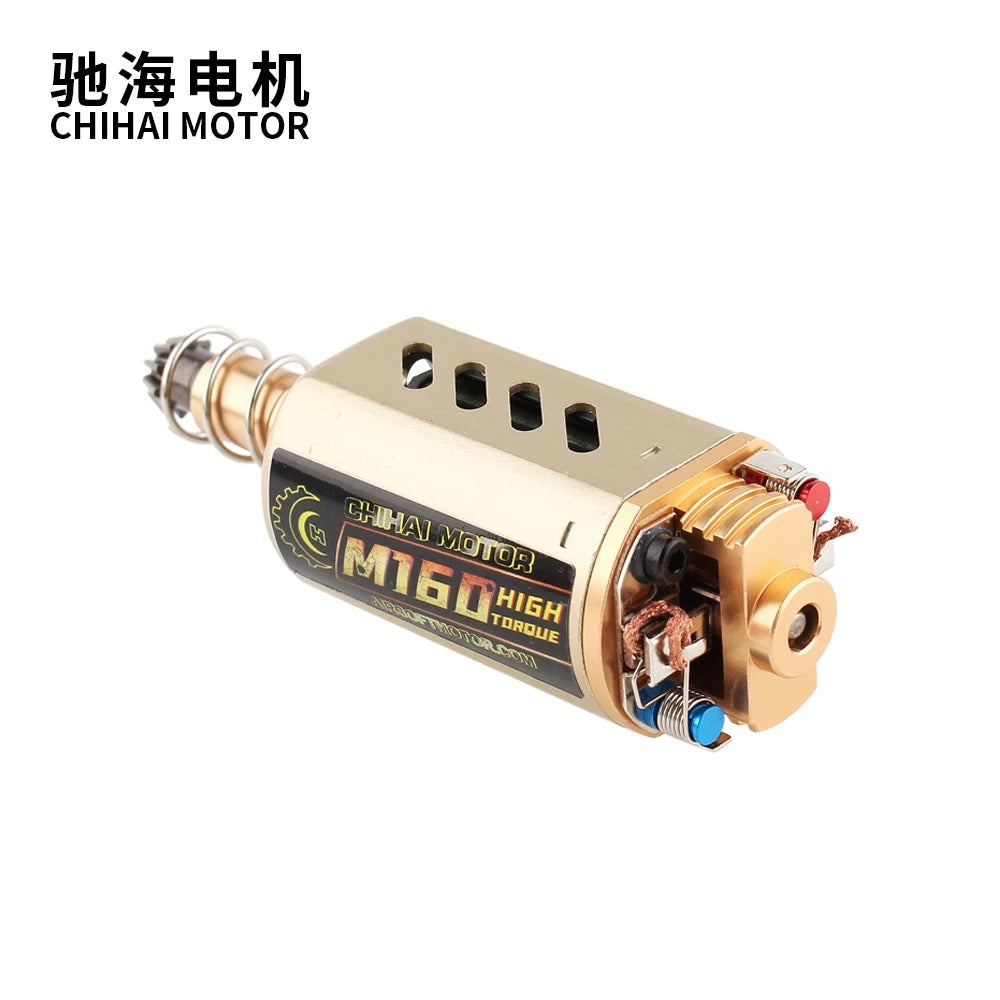

CHF-480WA CNC 16TPA NdFeB high torque DC motor
Operating voltage: DC 7.4-12V
  • DC  8.4V        21000rpm
  • DC  11.1V      31000rpm
Magnets: N35H Nd-Fe-B Magnets
TPA: 16
Pure copper wire winding
  • The rotor part adopts pure copper group, small resistance, strong conductivity, and makes motor torque increase.
CNC aluminium alloy Body
  • High strength, high accuracy, fast heat dissipation and strong corrosion resistance.

D Type shaft with D hole gear
  • The D type shaft is more convenient to install, not easy to skid and enhance the twisting force.

Hollowed out shell structure
  • Increase internal heat dissipation, reduce operating temperature and improve load characteristics.

Frequent blocking or frequent start-up and reversal are not recommended in the use process, which will greatly reduce the service life.
  • 1 X CHIHAI NdFeB 480 LONG M150 MOTOR
  • 1 X PINION GEAR (can be removed with small Alan key not included)
